Microsoft Project Quick Tip: Display a Status Date Gridline in the Gantt Chart

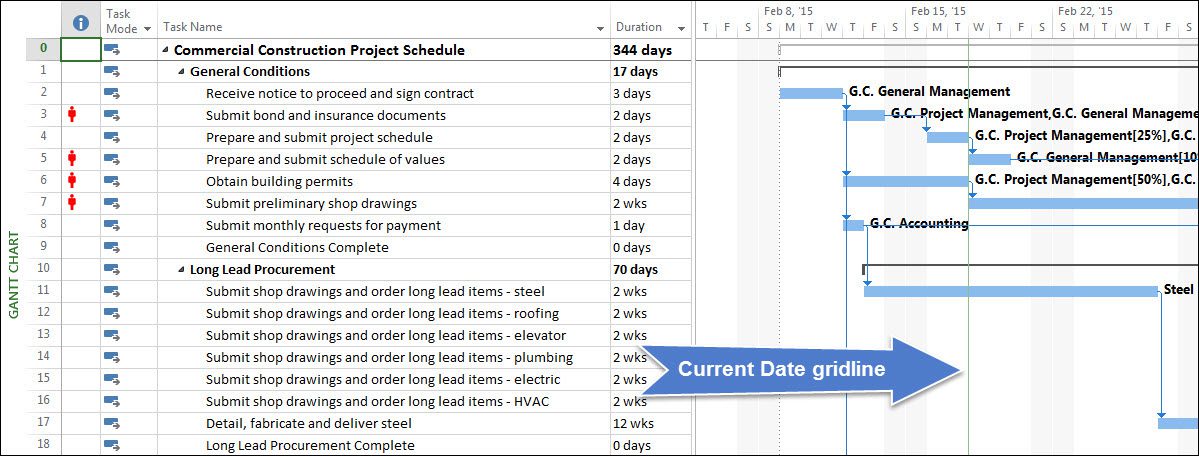

By default, Microsoft Project displays a Current date gridline in the Gantt Chart view. You can see a green Current date gridline displayed on 02-18-15 in the Gantt Chart view shown in the following figure.

gridline_1

By default, Microsoft Project 2013 does not display a Status date gridline in the Gantt Chart view. If you regularly specify the Status date in your projects as a part of your project updating process, I believe you will find it very helpful to display a Status date gridline in the Gantt Chart view of your projects.

Note: Before you can display the Status date gridline in the Gantt Chart view, you must actually set a Status date value in each of your projects. To do this, click the Status Date button in the Status section of the Project ribbon, select a date in the Status Date dialog, and then click the OK button.

To display a Status date gridline in the Gantt Chart view, complete the following steps:

  1. Apply the Gantt Chart
  2. Click the Format tab to display the Format

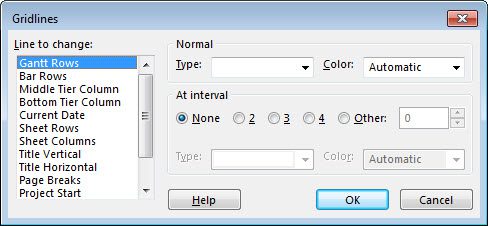

  3. In the Format section of the Format ribbon, click the Gridlines pick list button and select the Gridlines item on the list. Microsoft Project displays the Gridlines dialog shown in the following figure.
    gridline_2
  4. In the Gridlines dialog, scroll to the bottom of the Line to change list and select the Status Date
  5. In the Normal section of the dialog, click the Type pick list and select one of four line types (I personally like to use the last line type on the Type pick list in Microsoft Project 2013).

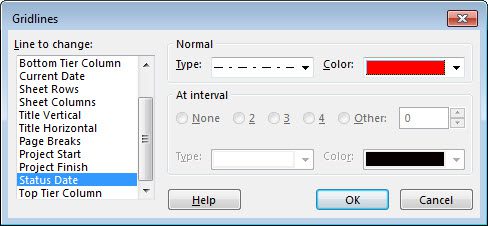

  6. In the Normal section of the dialog, click the Color pick list and select the color for the gridline (I personally like to use the red color in Microsoft Project 2013).The following figure shows my settings for displaying the Status date gridline in the Gantt Chart view.gridline_3

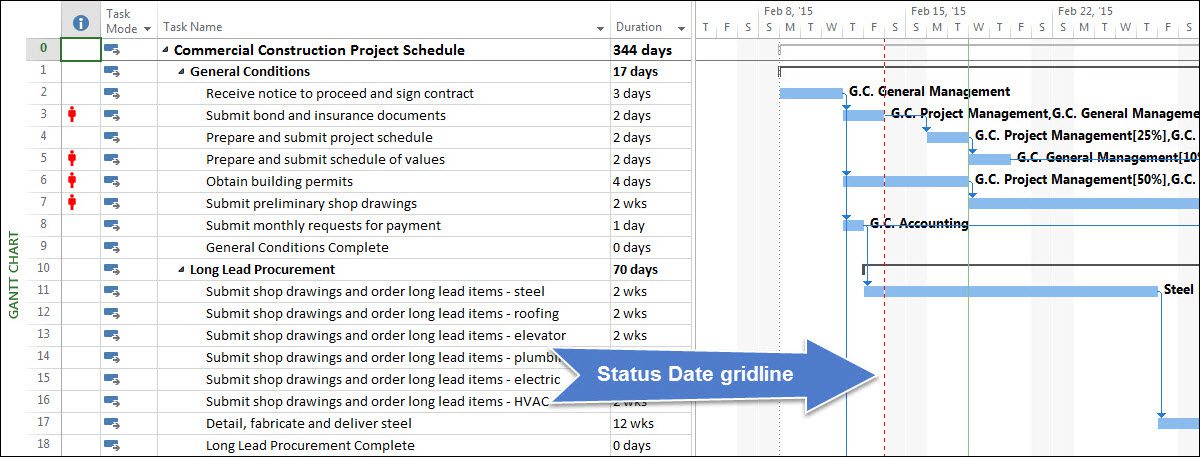

  1. In the Gridlines dialog, click the OKMicrosoft Project displays a Status date gridline in the Gantt Chart view, such as the one shown in the following figure.gridline_4

A version of this article originally appeared on the Sensei Project Solutions blog.

Written by Dale Howard

Dale Howard is the Director of Education for Sensei Project Solutions.  He is in his 15th year of serving as a Microsoft Project MVP (Most Valuable Professional) and is currently one of only 39 Microsoft Project MVPs in the entire world. Dale is the co-author of 21 books on Microsoft Project, Project Server, and Project Online. He works out of his home in Ellisville, Missouri (a west suburb of St. Louis).
